TV Mounting Atelier Newport Beach covers TV installation in the built-in media walls of Newport Beach homes — floor-to-ceiling cabinetry, a recessed niche for the screen and a hidden cabinet for the equipment — where the TV is part of the architecture and the planning matters more than the drilling.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Planning the niche and the cabinet
| Part of the wall | What to decide | Common mistake |
|---|---|---|
| Niche depth | TV plus mount plus cable bend | A niche too shallow for the plug end |
| Niche width | TV width plus room for the screen to swing | A tight fit that blocks tilt |
| Equipment cabinet | Ventilation and a path for the remote signal | A sealed door that traps heat |
| Power and data | Outlet inside the niche and a pocket for the cable | An outlet that lands behind the TV |
A backer board before the finish
When a media wall is still open, a plywood backer board is fastened across the studs before the drywall or panels go on. The mount then bolts into solid wood anywhere on the board, and the screen can later be moved or replaced without hunting for studs.
- Board depth: thick enough to hold lag screws securely, fastened across the face of the studs with the drywall going on over it.
- Board coverage: wider and taller than the largest TV likely to be hung there.
- Cable chase: a vertical channel from the niche to the equipment cabinet.

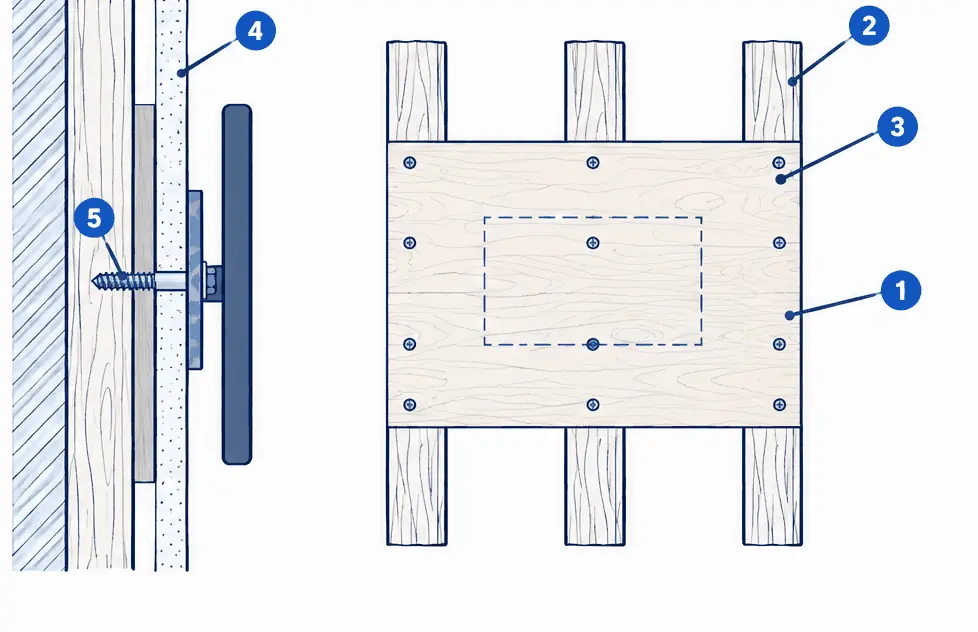

What the numbers show
- Plywood backer panel A sheet of plywood spans several studs and gives the lag bolts solid wood wherever the TV ends up.
- Studs The panel is screwed into every stud it crosses, so it behaves as part of the frame.
- Panel screws Screws through the panel into each stud hold it flat against the framing.
- Drywall over the panel The wall finish goes on over the panel and hides it completely.
- Lag bolt into the panel Lag bolts pass through the plate and the drywall and thread into the plywood, not into the drywall alone.
Ventilation, remotes and service access
A TV sitting in a recessed niche needs air around it. Venting at the top and bottom of the niche, or a small quiet fan, keeps the set cool. Equipment hidden behind closed doors usually needs an infrared repeater or a remote that does not rely on line of sight.
Built-In Media Wall TV Installation — common questions
Can a TV be added to a media wall that is already built?
Yes, if a stud or backer is reachable behind the finish. Otherwise a surface raceway or a small access panel handles the cabling.
Who handles the electrical box in the niche?
A new outlet or box in the niche is an electrician's job; the mounting is priced separately.
