TV Wall Mounting in Newport Beach
TV Mounting Atelier Newport Beach covers everyday TV wall mounting across Newport Beach — living rooms, dens and guest rooms in finished homes where the wall is freshly painted and every hole is planned — and a local installer finds the studs, hangs a fixed or tilting bracket, sets the screen to the seating and leaves the cords tidy.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
From bare wall to hung screen
A standard visit follows one order, and each step has a reason:
| Step | What is checked | Why it matters |
|---|---|---|
| Weight and pattern | TV weight and VESA holes against the bracket's rating | A rating of at least 1.5 times the weight leaves margin |
| Studs | A finder, then one small probe hole under the plate | The plate must reach framing, not hope for it |
| Mock-up | Painter's tape in the TV's outline, judged from the sofa | Size and height are easier to judge on the wall than on paper |
| Plate | Pilot holes, lag bolts, a level on the rails | A plate that sits flat keeps the screen square |
| Hang | TV on the rails, locking screws set, level checked under load | Safety screws stop an accidental lift-off |
| Finish | Cords dressed, tilt or arm shown to the household | The visit ends with a working screen |

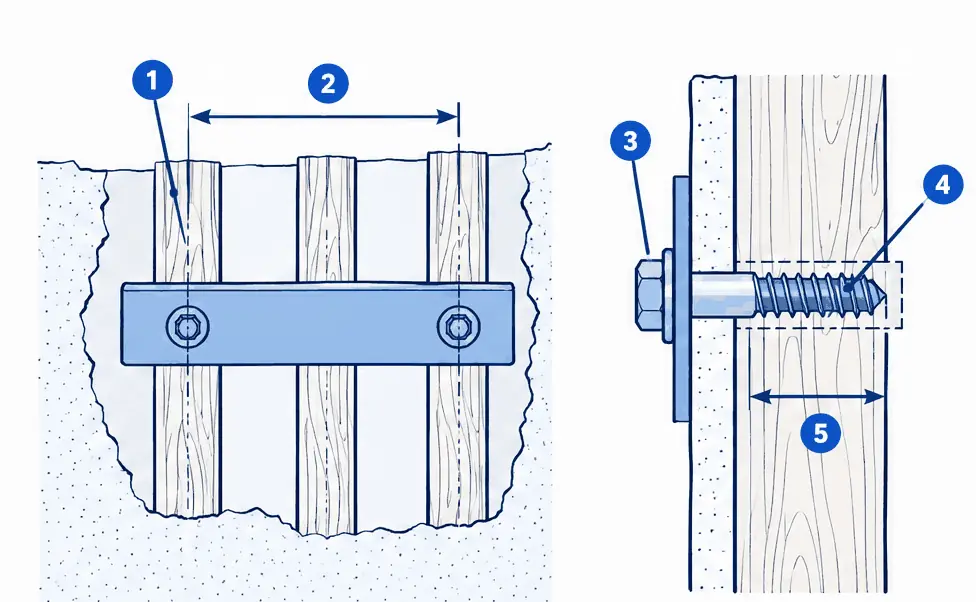

What the numbers show
- Stud center line Each bolt is driven on the center line of its stud, found with a finder and a probe hole.
- Stud spacing Studs sit about 16 inches apart, so a wide plate reaches two of them.
- Washer and head A washer under the hex head spreads the clamping force over the plate.
- Threads in solid wood The threads bite into the middle of the stud and end inside it.
- Depth into the stud The bolt reaches well into the wood beyond the drywall thickness.
Between the studs
Wide windows and open plans leave fewer solid studs than a small room has, and sometimes the ideal screen position falls on a hollow stretch of wall. The plate still reaches framing wherever it can, and hardware steadies the rest.
- Wide plates span two studs while the screen stays centered on the seating.
- Sliding adapters move the TV a few inches along the plate when the studs and the room disagree.
- Strap toggles open flat behind the drywall and spread the pull across a long strip.
- Backer boards are screwed across several studs when a large screen needs a solid face.
Careful holes in finished walls
Many Newport Beach homes are painted in soft, custom colors and finished to a high standard, so the install is planned to leave as little as possible behind. A strip of low-tack tape marks the drill spots, a vacuum nozzle catches dust at the bit, and probe holes are kept under the footprint of the plate where they disappear.
Height for a long, low sofa
Deep, low sectionals sit the viewer lower than a standard sofa, so the screen center lands a little lower too. The installer sits in the actual seat, marks the eye line on the tape and sets the center on it, then adds a few degrees of tilt only where glare or a high position asks for it.
TV Wall Mounting — common questions
How much does a basic TV wall mount cost in Newport Beach?
About $129–$179 for a 32–49 inch TV and $159–$219 for 50–65 inches on drywall over wood studs in 2026; larger TVs and harder walls add to that.
Does the installer bring the bracket?
Either works. A supplied bracket adds $55–$165 by type and size; one the homeowner already bought is checked against the TV's weight first.
Availability & price range
TV Wall Mounting: check availability and price range
Bookings aren't open yet — answer a few quick questions about the TV and the wall and get a typical Newport Beach price range right here. Typical Newport Beach prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
